30 Drilling Depth Mini Borehole With High Performance Water Well Drilling Rigs
Introduction to drilling rig

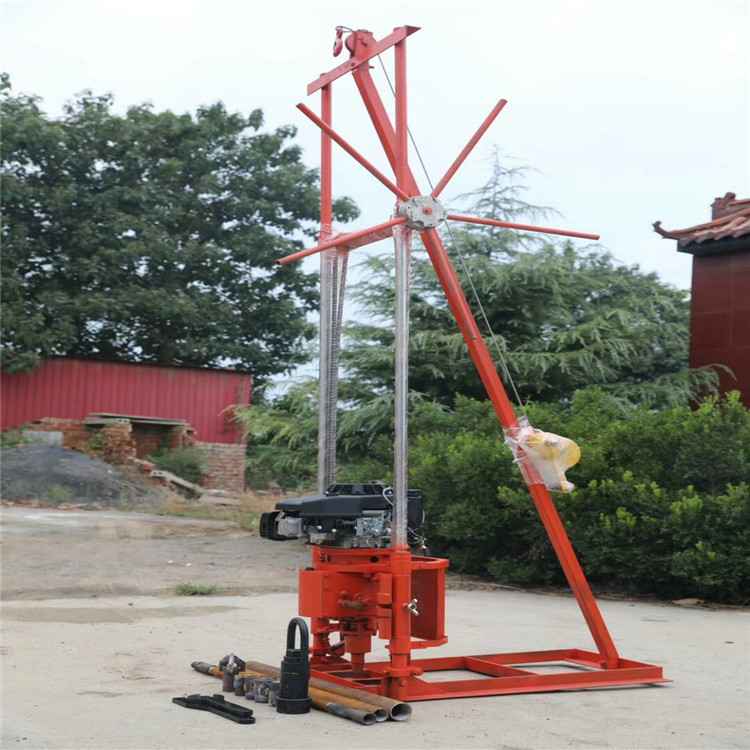

Small portable water well drilling machines /well borer / well drill:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 46-110mm, and drilling depth is 5 m to 30m. It also can be used in small building piling, like farmhouse or factory,
The advantage of the water well drilling machine are as below:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
Rig parameters
| Technical Data |
| Basic data | Elevator |
| Drilling depth | 35 15m | Lifting capacity | 4000N |
| Open hole diameter | 110mm | Drum rotational speed | 0.46 1.15 1.97m/s |
| Drill pipe diameter | 33.5mm | Drum diameter | 90mm |
| Weight | 290kg | Wire rope diameter | 8mm |
| Outsize | 1510*600*1055mm | Wire rope capacity | 18m |
| Swivel Disc Box | Oil pump |
| Speed | 136 338 578 r/min | Type | CBW-F314-ALP gear oil pump |
| Maximum torque | 350N*m | displacement | 14mL/r |
| Drilling schedule | 400mm | Rated speed | 2500r/min |
| the biggest pressure(under the oil Cylinder) | 8000N | Rated pressure | 20MPa |
| on the biggest force(Oil cylinder) | 10000N | The Max. pressure | 25MPa |
| Power | Tower |
| | Motor | Diesel engine | Type | Single seamless steel tube |
| Type | Y132M-4 | R185 | Tower height | 5.6 Meter |
| Power | 7.5KW | 6.47KW | | |
| Speed | 1440r/min | 2200r/min | | |
| Weight | 81KG | 95KG | | |
